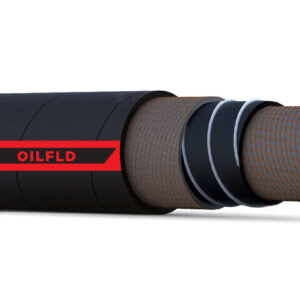

High Pressure Oil & Fuel Suction and Delivery Hose

Description

Our Oil & Fuel Suction and Delivery Hose is engineered for reliability in oil and fuel applications.
Designed with superior materials, it offers excellent resistance to abrasion, weather, and ozone, ensuring long-lasting performance across industrial settings.

• Tube: Oil & Fuel resistant conductive black NBR.
• Reinforcement: High-tensile synthetic cord with wire helix antistatic copper wires.
• Cover: Oil, weather and ozone resistant, smooth, cloth impression black CR.
• Temperature Range: -30°C to +70°C (-22°F to +158°F)
• Remarks: Upon request also available with 4:1 safety factor for offshore industry.

code	inch	mm	mm	bar	psi	bar	psi	gr/mt	mm	mt
MO-017-025-A	1	25	38	17	250	51	750	860	150	20-40
MO-017-032-A	1 1/4	32	45	17	250	51	750	1100	190	20-40
MO-017-038-A	1 1/2	38	51	17	250	51	750	1350	230	20-40
MO-017-051-A	2	51	65	17	250	51	750	1800	300	20-40
MO-017-063-A	2 1/2	63	79	17	250	51	750	2750	380	20-40
MO-017-076-A	3	76	93	17	250	51	750	3400	460	20-40
MO-017-102-A	4	102	119	17	250	51	750	4700	600	20-40
MO-017-127-A	5	127	148	17	250	51	750	7300	750	20-40
MO-017-152-A	6	152	174	17	250	51	750	9600	1000	20-40
MO-017-203-A	8	203	228	17	250	51	750	14600	1300	20
