BULK/SD/PARA

Description

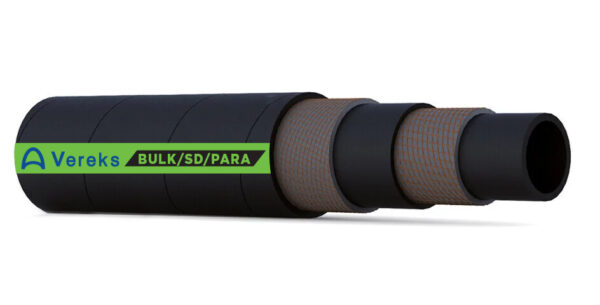

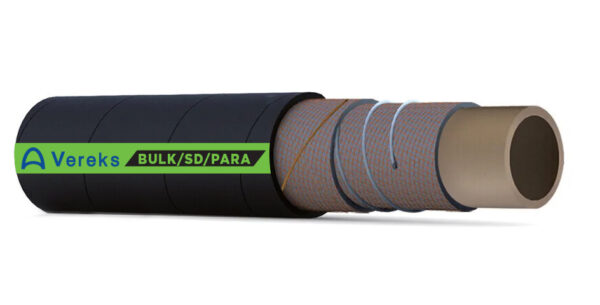

BULK MATERIAL – PARA SUCTION AND DELIVERY HOSE 10 BAR (150 PSI)

Our BULK/SD/PARA Hose is engineered for reliability in oil and fuel applications.
Designed with superior materials, it offers excellent resistance to abrasion, weather, and ozone, ensuring long-lasting performance across industrial settings.

• Tube: High abrasion resistant conductive black NR.
• Reinforcement: High-tensile synthetic cord with antistatic copper wire.
• Cover: Weather, ozone resistant, abrasion resistant, cloth impression black EPDM.
• Temperature Range: -30°C to +70°C (-22°F to +158°F)
• Remarks: Upon request heavy version 17 bar (250 ppm) available, also suitable for offshore industry.
• Application: Used for delivery of dry powder, slurry and cement.

code	inch	mm	mm	bar	psi	bar	psi	gr/mt	mm	mt
MM-010-025-V	1	25	37	10	150	30	450	645	200	20-40
MM-010-032-V	1 1/4	32	44	10	150	30	450	850	255	20-40
MM-010-038-V	1 1/2	38	52	10	150	30	450	1200	300	20-40
MM-010-051-V	2	51	65	10	150	30	450	1480	410	20-40
MM-010-063-V	2 1/2	63	78	10	150	30	450	1950	510	20-40
MM-010-076-V	3	76	93	10	150	30	450	2650	600	20-40
MM-010-102-V	4	102	122	10	150	30	450	4420	800	20-40
MM-010-127-V	5	127	149	10	150	30	450	6300	1000	20-40
MM-010-152-V	6	152	174	10	150	30	450	7700	1200	20-40
