CHEMICAL UHMWPE DELIVERY HOSE 16 BAR (250 PSI)

Description

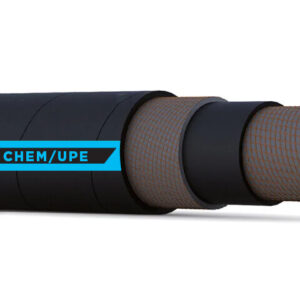

Our High Pressure UPE Chemical Delivery Hose is engineered for reliability in chemical and acids applications.

Designed with superior materials, it offers excellent resistance to abrasion, weather, and ozone, ensuring long-lasting performance across industrial settings.

• Tube: Chemical and solvent resistant translucent UHMWPE.
• Reinforcement: High-tensile synthetic cord and antistatic copper wires.
• Cover: Weather, ozone and abrasion resistant, smooth, cloth impression blue EPDM.
• Temperature Range: -30°C to +80°C (-22°F to +176°F)
• Remarks: Upon request other colours available.

Aplication:

• Used for high pressure discharge of chemicals, acids and high aromatic solvents.

code	inch	mm	mm	bar	psi	bar	psi	gr/mt	mm	mt
MX-016-019-VU	3/4	19	31	16	250	51	750	630	160	40
MX-016-025-VU	1	25	37	16	250	51	750	780	200	40
MX-016-032-VU	1 1/4	32	44	16	250	51	750	1000	255	40
MX-016-038-VU	1 1/2	38	51	16	250	51	750	1250	300	40
MX-016-051-VU	2	51	67	16	250	51	750	1830	410	40
MX-016-063-VU	2 1/2	63	79	16	250	51	750	2400	500	40
MX-016-076-VU	3	76	92	16	250	51	750	3000	600	40
MX-016-102-VU	4	102	118	16	250	51	750	3900	800	40
