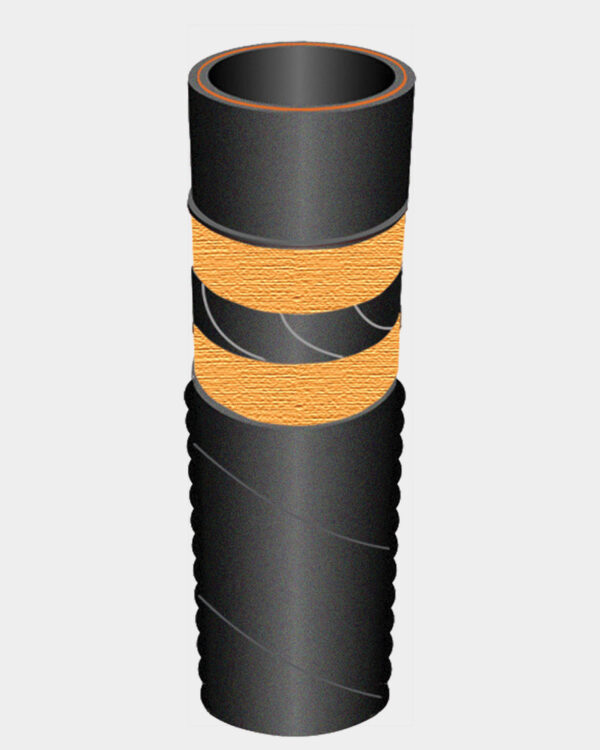

Corrugated Marine Exhaust Hose

Description

Our Corrugated Marine Exhaust Hose is engineered for reliability in oil and fuel applications.
Designed with superior materials, it offers excellent resistance to abrasion, weather, and ozone, ensuring long-lasting performance across industrial settings.

• Tube: Exhaust gas resistant black EPDM.
• Reinforcement: High-tensile synthetic cord with wire helix.
• Cover: Abrasion, weather and ozone resistant, corrugated cloth impression black EPDM.
• Temperature Range: -30°C to +100°C (-22°F to +212°F)
• Remarks: Standart SAE J 2006; also upon request smooth version available.

			152
code	inch	mm	mm	bar	psi	bar	psi	gr/mt	mm	mt
ME-005-025-AC	1	25	33	5	75	15	225	470	50	20-40
ME-005-032-AC	1 1/4	32	40	5	75	15	225	580	55	20-40
ME-005-038-AC	1 1/2	38	46	5	75	15	225	700	60	20-40
ME-005-051-AC	2	51	59	5	75	15	225	860	70	20-40
ME-005-057-AC	2 1/4	57	65	5	75	15	225	980	80	20-40
ME-005-063-AC	2 1/2	63	71	5	75	15	225	1050	90	20-40
ME-005-076-AC	3	76	85	5	75	15	225	1250	100	20-40
ME-005-102-AC	4	102	112	5	75	15	225	2500	150	20-40
ME-005-127-AC	5	127	137	5	75	15	225	3300	200	20-40
ME-005-152-AC	6	152	164	5	75	15	225	5300	280	20-40
ME-005-203-AC	8	203	215	5	75	15	225	8500	400	10
