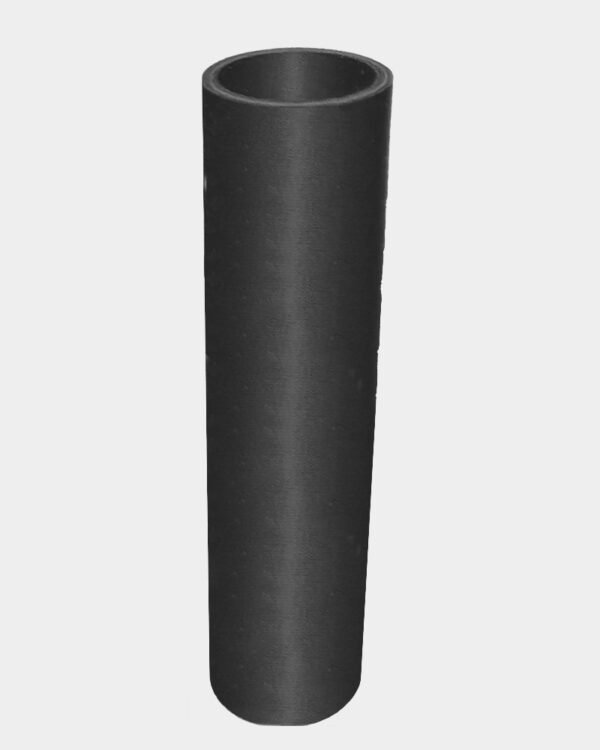

Cotton Overbraided Fuel Hose

Description

Our Cotton Overbraided Fuel Hose is engineered for reliability in oil and fuel applications.
Designed with superior materials, it offers excellent resistance to abrasion, weather, and ozone, ensuring long-lasting performance across industrial settings.

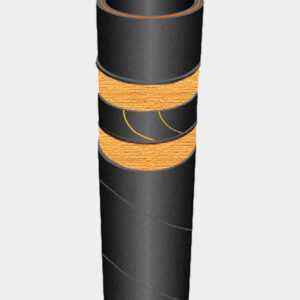

• Tube: Oil & Fuel resistant conductive black NBR.
• Cover: High tensile synthetic braid.
• Temperature Range: -30°C to +85°C (-22°F to +185°F)
• Application: For diesel and mineral oil grease.

code	mm	mm	bar	psi	bar	psi	gr/mt	mm	mt
SO-010-003-V1	3.2	7	10	150	30	450	40	40	10-15-20
SO-010-003-V2	3.5	7.5	10	150	30	450	45	45	10-15-20
SO-010-004-V1	4	8	10	150	30	450	50	45	10-15-20
SO-010-004-V2	4	9	10	150	30	450	65	45	10-15-20
SO-010-005-V1	5	10	10	150	30	450	75	50	10-15-20
SO-010-005-V2	5.5	10.5	10	150	30	450	80	50	10-15-20
SO-010-006-V1	6	11	10	150	30	450	90	50	10-15-20
SO-010-006-V2	6	12	10	150	30	450	110	50	10-15-20
SO-010-007-V1	7	12	10	150	30	450	100	50	10-15-20
SO-010-007-V2	7.5	12.5	10	150	30	450	105	50	10-15-20
SO-010-008-V1	8	15	10	150	30	450	150	60	10-15-20
SO-010-010-V1	10	17	10	150	30	450	195	70	10-15-20
SO-010-012-V1	12	18	10	150	30	450	190	85	10-15-20
