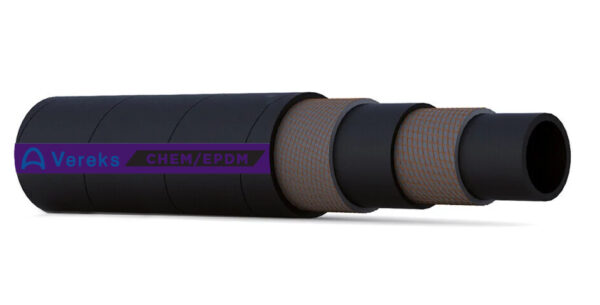

EPDM Chemical Delivery Hose

Description

Our EPDM Chemical Delivery Hose is engineered for reliability in oil and fuel applications.
Designed with superior materials, it offers excellent resistance to abrasion, weather, and ozone, ensuring long-lasting performance across industrial settings.

• Tube: Chemical resistant smooth black EPDM.
• Reinforcement: High-tensile synthetic cord with antistatic copper wires.
• Cover: Weather, ozone and abrasion resistant, smooth, cloth impression black EPDM.
• Temperature Range: -30°C to +100°C (-22°F to +212°F)
• Remarks: Standart: DIN 2823; upon request high pressure version 17 bar (250 psi) available.

		4
code	inch	mm	mm	bar	psi	bar	psi	gr/mt	mm	mt
MX-010-019-VE	3/4	19	31	10	150	40	600	600	160	20-40
MX-010-025-VE	1	25	37	10	150	40	600	730	200	20-40
MX-010-032-VE	1 1/4	32	44	10	150	40	600	930	255	20-40
MX-010-038-VE	1 1/2	38	51	10	150	40	600	1200	300	20-40
MX-010-051-VE	2	51	65	10	150	40	600	1710	410	20-40
MX-010-063-VE	2 1/2	63	79	10	150	40	600	2300	500	20-40
MX-010-076-VE	3	76	92	10	150	40	600	2800	600	20-40
MX-010-102-VE	4	102	118	10	150	40	600	3700	800	20-40
