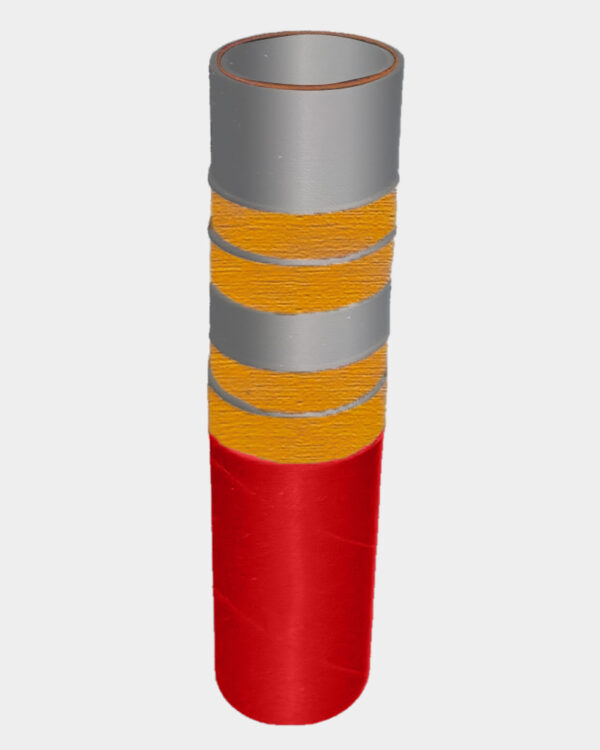

Heavy Duty Food Suction and Delivery Hose

Description

Our Heavy Duty Food Suction and Delivery Hose is engineered for reliability in oil and fuel applications.
Designed with superior materials, it offers excellent resistance to abrasion, weather, and ozone, ensuring long-lasting performance across industrial settings.

• Tube: Non-toxic, food quality, abrasion resistant white NR.
• Reinforcement: High-tensile synthetic cord with steel wire helix.
• Cover: Weather, ozone, and abrasion resistant, smooth, cloth impression orange NR/EPDM.
• Temperature Range: -30°C to +85C (-22°F to +185°F)
• Remarks: For the tube FDA approved ingredients are used, upon request other colours available for cover and tube.
• Application: Used for suction and discharge of high pressure portable water, mineral water.

code	inch	mm	mm	bar	psi	bar	psi	gr/mt		mt
MF-020-025-AO	1	25	39	20	300	60	900	990	150	20-40
MF-020-032-AO	1 1/4	32	46	20	300	60	900	1250	190	20-40
MF-020-038-AO	1 1/2	38	53	20	300	60	900	1760	230	20-40
MF-020-051-AO	2	51	68	20	300	60	900	2600	300	20-40
MF-020-063-AO	2 1/2	63	80	20	300	60	900	3350	380	20-40
MF-020-076-AO	3	76	94	20	300	60	900	3920	460	20-40
MF-020-102-AO	4	102	120	20	300	60	900	5900	600	20-40
MF-020-127-AO	5	127	149	20	300	60	900	7900	750	20-40
MF-020-152-AO	6	153	174	20	300	60	900	9600	900	20-40
