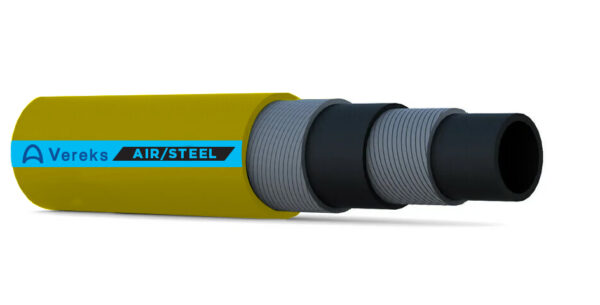

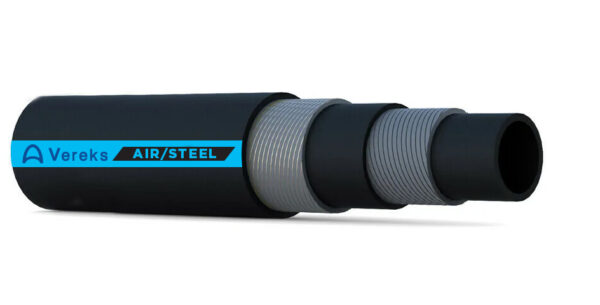

Steel Air Hose

Description

Our Steel Air Hose is built for heavy-duty applications in construction and mining industries.
With reinforced steel wiring and high-quality materials, this hose offers excellent durability and performance in demanding environments.

• Tube: Air, water, and oil mist resistant, smooth black SBR/NBR.
• Reinforcement: High-tensile steel wire for enhanced strength.
• Cover: Abrasion, weather, and ozone resistant, smooth cloth impression, yellow SBR/EPDM.
• Temperature Range: -30°C to +85°C (-22°F to +185°F)

Applications:

• Designed for construction and mining industries.
• Standard BS 5118/3 compliant.

code	inch	mm	mm	bar	psi	bar	psi	gr/mt	mm	mt
MA-040-006-Y	1/4	6	13	40	600	160	2400	700	130	40
MA-040-008-Y	5/16	8	16	40	600	160	2400	835	150	40
MA-040-010-Y	3/8	10	19	40	600	160	2400	950	190	40
MA-040-013-Y	1/2	13	24	40	600	160	2400	1400	250	40
MA-040-016-Y	5/8	16	28	40	600	160	2400	1950	300	40
MA-040-025-Y	1	25	38	40	600	160	2400	2850	380	40
MA-040-032-Y	1 1/4	32	51	40	600	160	2400	3750	500	40
MA-040-038-Y	1 1/2	38	63	40	600	160	2400	4700	600	40
MA-040-051-Y	2	51	76	40	600	160	2400	5400	750	40
MA-040-063-Y	2 1/2	63	94	40	600	160	2400	6400	900	40
MA-040-076-Y	3	76	108	40	600	160	2400	8300	1000	40
