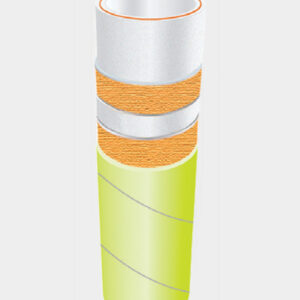

UHMWPE Chemical Suction and Delivery Hose

Description

Our UHMWPE Chemical Suction and Delivery Hose is engineered for reliability in oil and fuel applications.
Designed with superior materials, it offers excellent resistance to abrasion, weather, and ozone, ensuring long-lasting performance across industrial settings.

• Tube: Chemical and solvent resistant translucent UHMWPE.
• Reinforcement: High-tensile synthetic cord with wire helix and antistatic copper wires.
• Cover: Weather, ozone and abrasion resistant, smooth, cloth impression blue EPDM.
• Temperature Range: -30°C to +80°C (-22°F to +176°F)
• Remarks: Upon request other colours available.
• Aplication: Used for suction and discharge of chemicals, acids and high aromatic solvents.

code	inch	mm	mm	bar	psi	bar	psi	gr/mt	mm	mt
MX-017-019-AU	3/4	19	31	17	250	51	750	630	120	20-40
MX-017-025-AU	1	25	37	17	250	51	750	780	150	20-40
MX-017-032-AU	1 1/4	32	44	17	250	51	750	1000	200	20-40
MX-017-038-AU	1 1/2	38	51	17	250	51	750	1250	230	20-40
MX-017-051-AU	2	51	65	17	250	51	750	1830	300	20-40
MX-017-063-AU	2 1/2	63	79	17	250	51	750	2400	380	20-40
MX-017-076-AU	3	76	92	17	250	51	750	3000	460	20-40
MX-017-102-AU	4	102	118	17	250	51	750	3900	600	20-40
