DOCK

Description

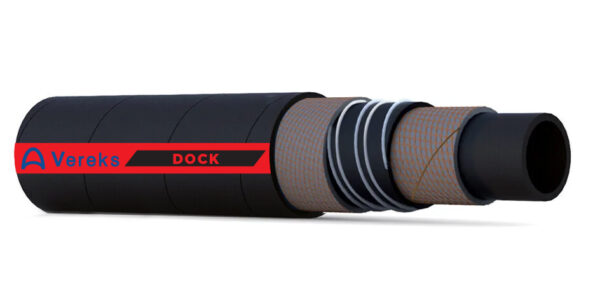

DOCK LOADING HOSE 15 BAR (225 PSI)

Our Dock Hose is engineered for reliability in oil and fuel applications.
Designed with superior materials, it offers excellent resistance to abrasion, weather, and ozone, ensuring long-lasting performance across industrial settings.

• Tube: Oil & Fuel resistant conductive black NBR.
• Reinforcement: High-tensile synthetic cord with wire helix antistatic copper wires.
• Cover: Oil, weather and ozone resistant, smooth, cloth impression black CR.
• Temperature Range: -30°C to +70°C (-22°F to +158°F)
• Remarks: Upon request also available with 4:1 safety factor for offshore industry.

code	inch	mm	mm	bar	psi	bar	psi	gr/mt	mm	mt
MO-017-025-A	1	25	38	17	250	51	750	860	150	20-40
MO-017-032-A	1 1/4	32	45	17	250	51	750	1100	190	20-40
MO-017-038-A	1 1/2	38	51	17	250	51	750	1350	230	20-40
MO-017-051-A	2	51	65	17	250	51	750	1800	300	20-40
MO-017-063-A	2 1/2	63	79	17	250	51	750	2750	380	20-40
MO-017-076-A	3	76	93	17	250	51	750	3400	460	20-40
MO-017-102-A	4	102	119	17	250	51	750	4700	600	20-40
MO-017-127-A	5	127	148	17	250	51	750	7300	750	20-40
MO-017-152-A	6	152	174	17	250	51	750	9600	1000	20-40
MO-017-203-A	8	203	228	17	250	51	750	14600	1300	20
