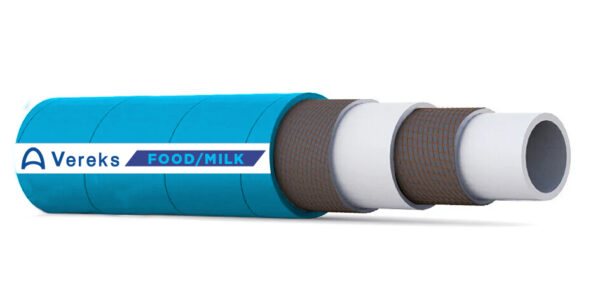

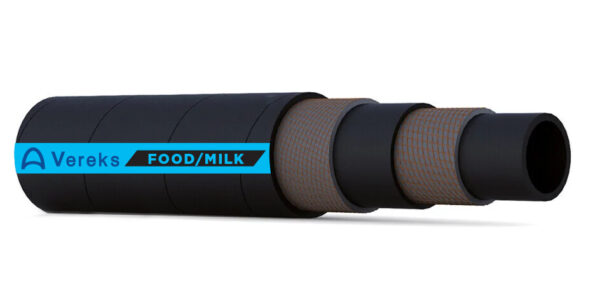

MILK DELIVERY HOSE 10 BAR (150 PSI)

Description

Our Milk Delivery Hose is engineered for reliability in food ,milk and drink applications.
Designed with superior materials, it offers excellent resistance to abrasion, weather, and ozone, ensuring long-lasting performance across industrial settings.

• Tube: Non-toxic, food quality, abrasion resistant white NR.
• Reinforcement: High-tensile synthetic cord.
• Cover: Weather, ozone and abrasion resistant, smooth, cloth impression blue NR/EPDM.
• Temperature Range: -30°C to +85C (-22°F to +185°F)
• Remarks: For the tube FDA approved ingredients are used.

Application:

• Used for delivery of potable milk and soft drinks.

code	inch	mm	mm	bar	psi	bar	psi	gr/mt		mt
MF-010-013-VB	1/2	13	23	10	150	30	450	400	100	40
MF-010-019-VB	3/4	19	30	10	150	30	450	620	160	40
MF-010-025-VB	1	25	36	10	150	30	450	740	200	40
MF-010-032-VB	1 1/4	32	44	10	150	30	450	1050	255	40
MF-010-038-VB	1 1/2	38	51	10	150	30	450	1290	300	40
MF-010-051-VB	2	51	65	10	150	30	450	1790	410	40
MF-010-063-VB	2 1/2	63	78	10	150	30	450	2100	500	40
MF-010-076-VB	3	76	92	10	150	30	450	3000	600	40
MF-010-102-VB	4	102	118	10	150	30	450	3950	800	40
