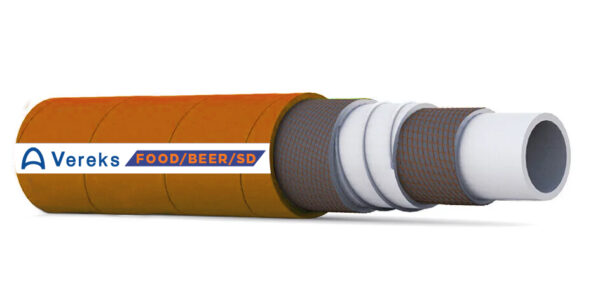

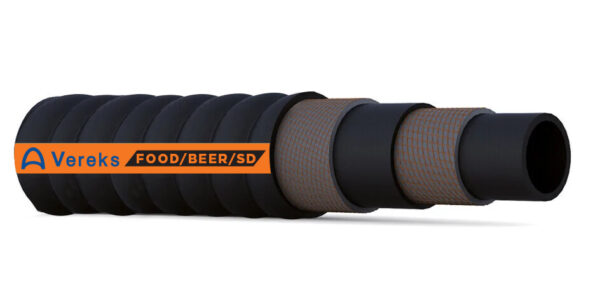

BEER SUCTION AND DELIVERY HOSE 10 BAR (150 PSI)

Description

Our Beer Suction and Delivery Hose is engineered for reliability in food ,milk and drink applications.
Designed with superior materials, it offers excellent resistance to abrasion, weather, and ozone, ensuring long-lasting performance across industrial settings.

• Tube: Non-toxic, food quality, abrasion resistant white NR.
• Reinforcement: High-tensile synthetic cord with steel wire helix.
• Cover: Weather, ozone and abrasion resistant, smooth, cloth impression red NR/EPDM.
• Temperature Range: -30°C to +85C (-22°F to +185°F)
• Remarks: For the tube FDA approved ingredients are used.

Application:

• Used for suction and discharge of beer and soft drinks.

code	inch	mm	mm	bar	psi	bar	psi	gr/mt	mm	mt
MF-010-019-AR	3/4	19	30	10	150	30	450	750	120	40
MF-010-025-AR	1	25	36	10	150	30	450	900	150	40
MF-010-032-AR	1 1/4	32	44	10	150	30	450	1250	190	40
MF-010-038-AR	1 1/2	38	51	10	150	30	450	1700	230	40
MF-010-051-AR	2	51	66	10	150	30	450	2350	300	40
MF-010-063-AR	2 1/2	63	78	10	150	30	450	2900	380	40
MF-010-076-AR	3	76	92	10	150	30	450	3530	460	40
MF-010-102-AR	4	102	118	10	150	30	450	4500	600	40
