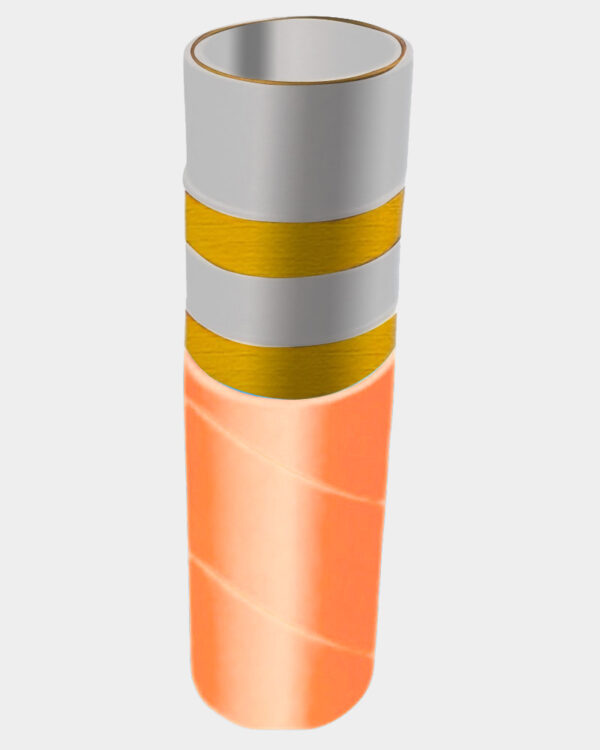

Potable Water – Brewers Suction Delivery Hose

Description

Our Potable Water – Brewers Suction Delivery Hose is engineered for reliability in oil and fuel applications.
Designed with superior materials, it offers excellent resistance to abrasion, weather, and ozone, ensuring long-lasting performance across industrial settings.

• Tube: Non-toxic, food quality, abrasion resistant white NR.
• Reinforcement: High-tensile synthetic cord with steel wire helix.
• Cover: Weather, ozone and abrasion resistant, smooth, cloth impression orange NR/EPDM.
• Temperature Range: -30°C to +85C (-22°F to +185°F)
• Remarks: For the tube FDA approved ingredients are used; upon request red tube available.
• Application: Used for suction and discharge of potable water, mineral water, wine and soft drinks.

code	inch	mm	mm	bar	psi	bar	psi	gr/mt		mt
MF-010-019-AO	3/4	19	31	10	150	30	450	750	120	20-40
MF-010-025-AO	1	25	38	10	150	30	450	900	150	20-40
MF-010-032-AO	1 1/4	32	45	10	150	30	450	1250	190	20-40
MF-010-038-AO	1 1/2	38	52	10	150	30	450	1700	230	20-40
MF-010-051-AO	2	51	66	10	150	30	450	2350	300	20-40
MF-010-063-AO	2 1/2	63	78	10	150	30	450	2900	380	20-40
MF-010-076-AO	3	76	92	10	150	30	450	3530	460	20-40
MF-010-102-AO	4	102	118	10	150	30	450	4500	600	20-40
