TANK TRUCK PETROLEUM HOSE 300 PSI

Description

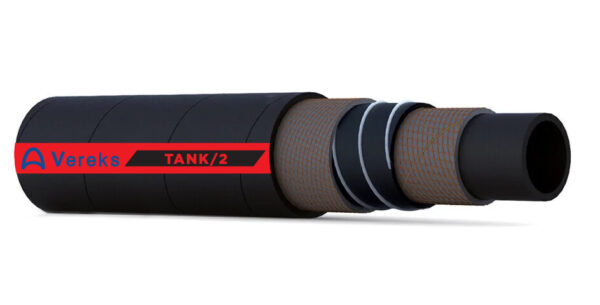

TANK TRUCK PETROLEUM HOSE 300 PSI

Our Tank 2 Hose is engineered for reliability in oil and fuel applications.
Designed with superior materials, it offers excellent resistance to abrasion, weather, and ozone, ensuring long-lasting performance across industrial settings.

• Tube: Oil & Fuel resistant conductive black NBR
• Reinforcement: High-tensile synthetic cord with steel wire helix antistatic copper wire
• Cover: Oil, petroleum products , weather and ozone resistant, smooth, cloth impression black NBR
• Temperature Range: -30°C to +70°C (-22°F to +158°F)

Applications:

• Ideal for use high pressure of tank trucks and transfer of petroleum products with aromatic content up to %50

code	inch	mm	inch	mm	bar	psi	bar	psi	Lbs/ft	mm	ft
MO-020-051-ATT	2	51	2,48	63	20	300	60	900	1,18	300	100
MO-020-063-ATT	2 1/2	63	2,99	76	20	300	60	900	1,7	380	100
MO-020-076-ATT	3	76	3,54	90	20	300	60	900	2,01	460	100
MO-020-102-ATT	4	102	4,65	118	20	300	60	900	3,1	600	100
MO-020-127-ATT	5	127	5,71	145	20	300	60	900	4,5	750	100
MO-020-152-ATT	6	152	6,69	172	20	300	60	900	5,6	1000	100
MO-020-203-ATT	8	203	8,86	225	20	300	60	900	8,9	1200	100
