UPE FOOD CHEMICAL SUCTION AND DELIVERY HOSE 10 BAR (150 PSI)

Description

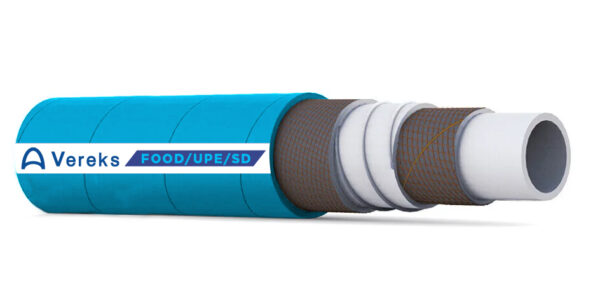

Our UPE FOOD CHEMICAL SUCTION AND DELIVERY HOSE 10 BAR (150 PSI) Hose is engineered for reliability in aggressive chemicals, solvents, alcohol and food products
Designed with superior materials, it offers excellent resistance to abrasion, weather, and ozone, ensuring long-lasting performance across industrial settings.

• Tube: Non-toxic, food quality, abrasion resistant white UHMWPE
• Reinforcement: High-tensile synthetic cord with wire helix and antistatic copper wire.
• Cover: Weather, ozone and abrasion resistant, smooth, cloth impression blue EPDM.
• Temperature Range: -30°C to +85C (-22°F to +185°F)
• Remarks: For the tube FDA approved ingredients are used.

Application:

• Used for suction and delivery of aggressive chemicals, solvents, alcohol and food products

code	inch	mm	mm	bar	psi	bar	psi	gr/mt	mm	mt
MF-010-013-AU	1/2	13	25	10	150	30	450	400	100	40
MF-010-019-AU	3/4	19	31	10	150	30	450	620	120	40
MF-010-025-AU	1	25	37	10	150	30	450	750	150	40
MF-010-032-AU	1 1/4	32	44	10	150	30	450	975	200	40
MF-010-038-AU	1 1/2	38	51	10	150	30	450	1200	230	40
MF-010-051-AU	2	51	67	10	150	30	450	1800	300	40
MF-010-063-AU	2 1/2	63	79	10	150	30	450	2350	380	40
MF-010-076-AU	3	76	92	10	150	30	450	2975	460	40
MF-010-102-AU	4	102	118	10	150	30	450	3850	600	40
