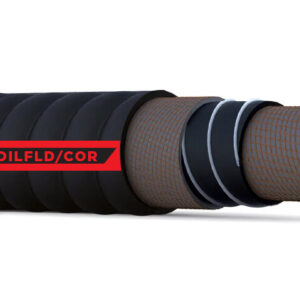

Flexible Corrugated Oil & Fuel Suction and Delivery Hose

Description

Our Flexible Corrugated Oil & Fuel Suction and Delivery Hose is engineered for reliability in oil and fuel applications.
Designed with superior materials, it offers excellent resistance to abrasion, weather, and ozone, ensuring long-lasting performance across industrial settings.

• Tube: Oil & Fuel resistant conductive black NBR.
• Reinforcement: High-tensile synthetic cord with wire helix and antistatic copper wires.
• Cover: Oil, weather and ozone resistant, smooth, cloth impression black CR.
• Temperature Range: -30°C to +70°C (-22°F to +158°F)
• Remarks: Upon request also channeled version available.

code	inch	mm	mm	bar	psi	bar	psi	gr/mt	mm	mt
MO-010-019-AC	3/4	19	30	10	150	30	450	580	60	20-40
MO-010-025-AC	1	25	36	10	150	30	450	770	80	20-40
MO-010-032-AC	1 1/4	32	43	10	150	30	450	920	100	20-40
MO-010-038-AC	1 1/2	38	49	10	150	30	450	1050	120	20-40
MO-010-051-AC	2	51	63	10	150	30	450	1630	160	20-40
MO-010-063-AC	2 1/2	63	76	10	150	30	450	2100	190	20-40
MO-010-076-AC	3	76	90	10	150	30	450	2900	220	20-40
MO-010-102-AC	4	102	118	10	150	30	450	4200	290	20-40
MO-010-127-AC	5	127	143	10	150	30	450	5900	360	20-40
MO-010-152-AC	6	152	168	10	150	30	450	8000	450	20-40
